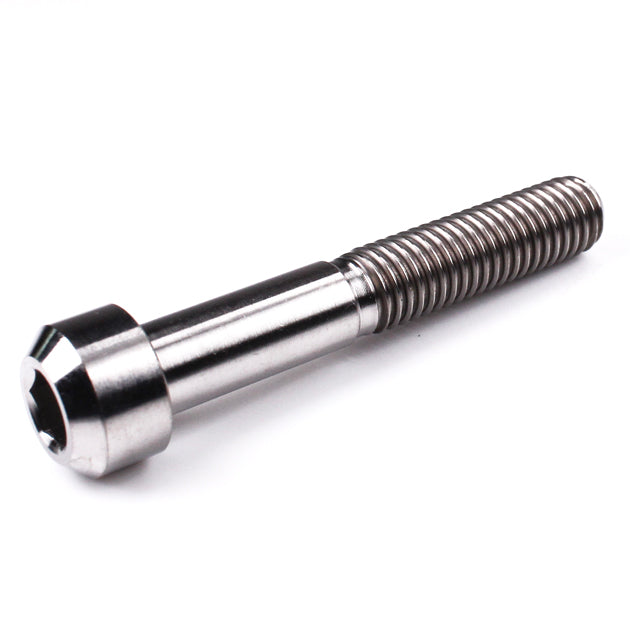

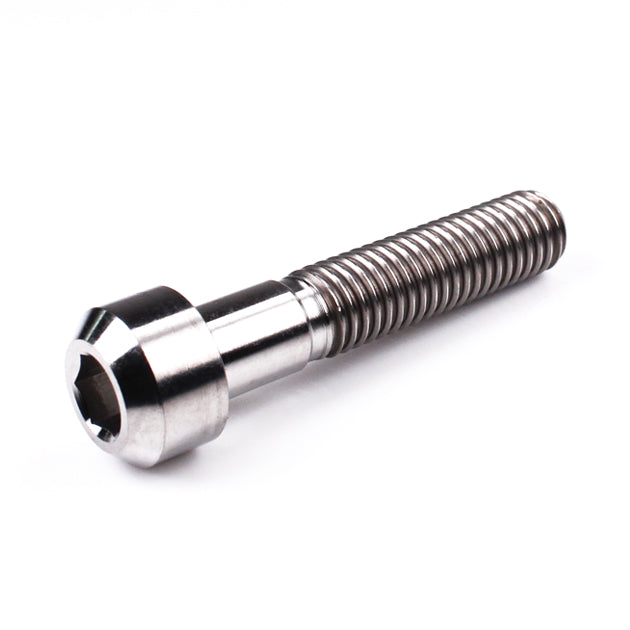

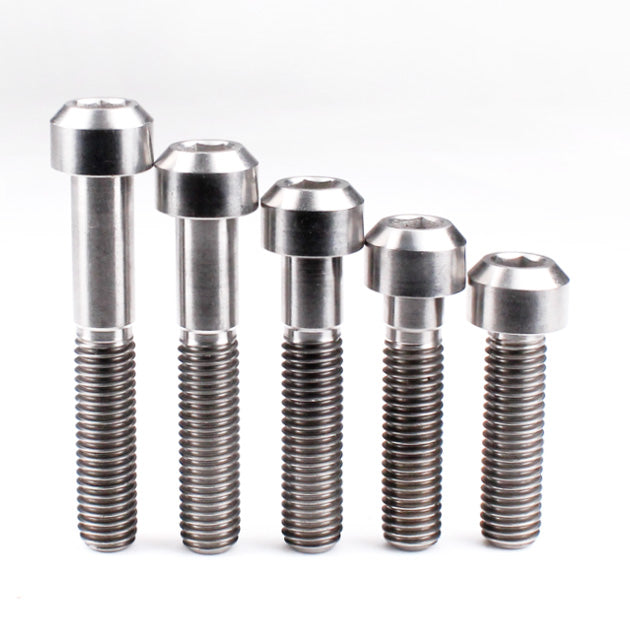

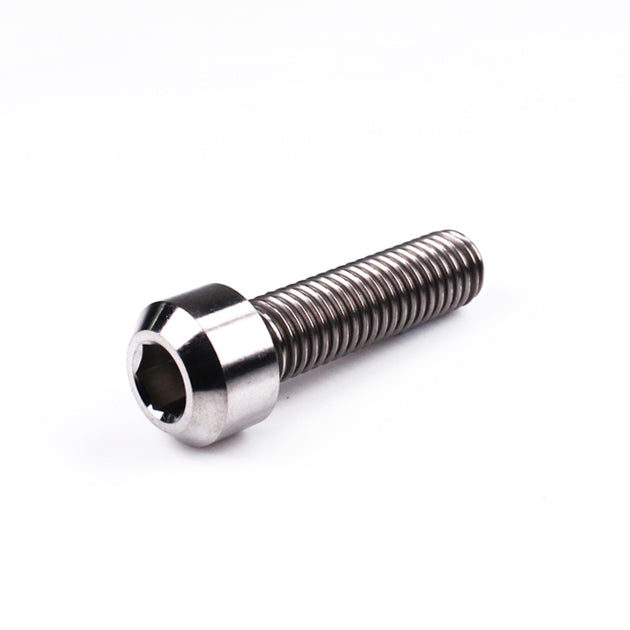

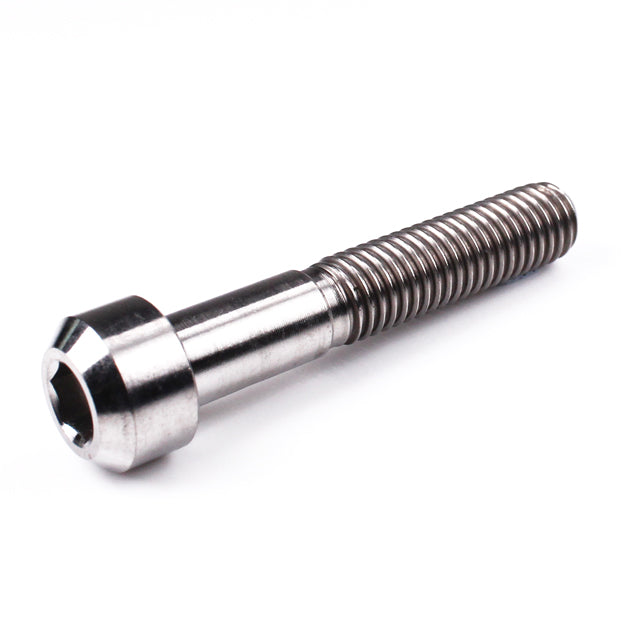

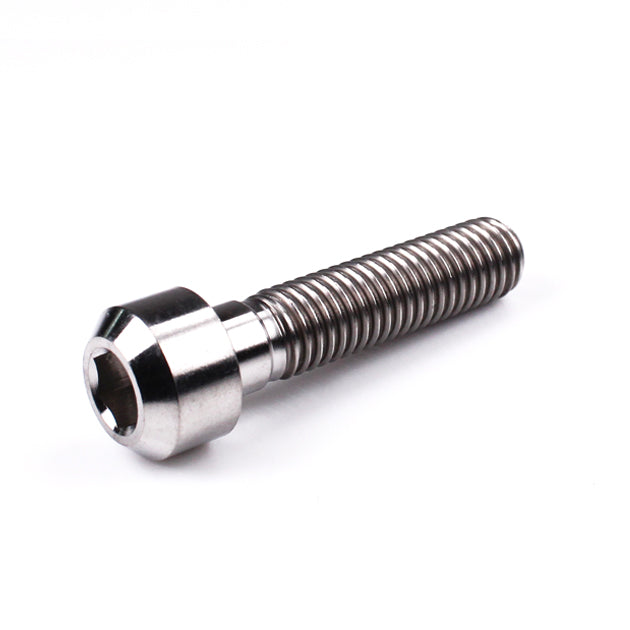

Titanium Chamfer Socket Cap Head Bolts M8 (1.5mm) 30 35 40 45 50mm Polished
Titanium Chamfer Socket Cap Head Bolts M8 (1.5mm) 30 35 40 45 50mm Polished
Low stock
Free UK delivery on orders over £25
Couldn't load pickup availability
Description
Titanium chamfer socket cap head bolt in M8 (1.5mm pitch), available in multiple lengths. Made from Grade 5 titanium (Ti-6Al-4V) with a tensile strength of 900–1050 MPa. The chamfered head design provides a clean, premium look and is compatible with our M8 aluminium cone washers.
Specification
| Material | Grade 5 Titanium (Ti-6Al-4V) |
|---|---|
| Finish | Polished |
| Head diameter | 13mm |
| Head depth | 8mm |
| Allen key size | 6mm |
| Weight per bolt | 30mm/9g 35mm/10g 40mm/11g 45mm/12g 50mm/13g |
| Thread diameter | M8 |
| Thread pitch | 1.5mm |
- Precision-finished with rolled threads
Fitment and safety
Check the thread pitch, length and diameter match your original bolt before fitting. Not sure? Read our FAQ.
Delivery and returns
Orders are dispatched within 1–2 working days. UK delivery is free on orders over £25.
Returns: 30 days from delivery. Items must be unused and in their original packaging. Email info@avantmotodesign.com before sending anything back.
Care
Torque: use a calibrated torque wrench and the manufacturer specification.
Anti-seize: titanium can gall if fitted dry. Apply a thin layer of copper-based anti-seize to the threads when fitting into aluminium or steel.
Tools: use a well-fitting hex key and push it fully home before tightening, to avoid rounding the socket.
Cleaning: wipe with a soft cloth and mild soapy water. A non-abrasive metal polish will bring back the shine.
