Titanium Chamfer Socket Cap Head Bolts M5 (0.80MM) 15MM Polished

Titanium fasteners are ideal for applications that require both lightness and high strength. Our M5 (0.80mm) x 15mm chamfer socket cap head bolts are manufactured from titanium grade 5 which is both extremely strong and incredibly light, having one of the the highest strength-to-weight ratios available to the industry, 30% stronger than steel and almost 50% lighter. As well as the weight saving benefits, the bolts offer higher corrosion resistance than OEM bolts.

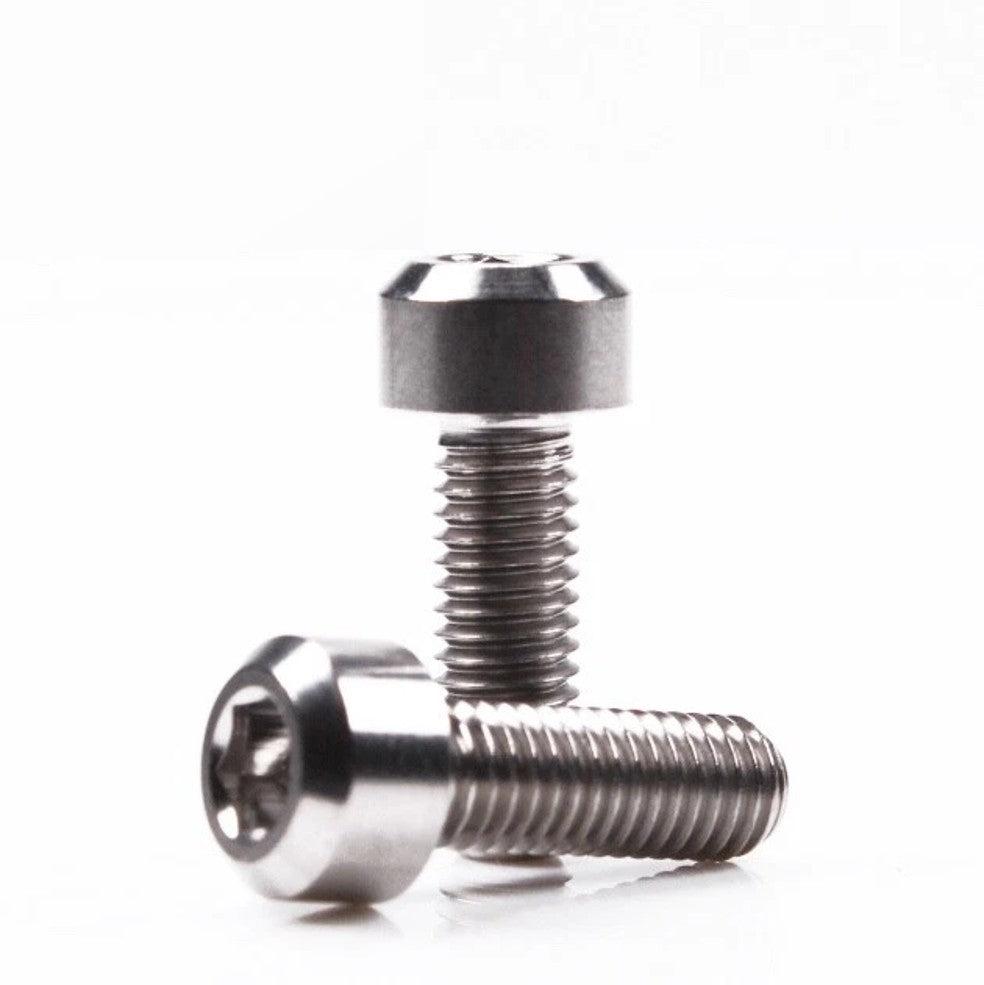

M5 (0.80mm) x 15mm Titanium Chamfer Socket Cap Head Bolts

Material : titanium Gr5 (Ti-6Al-4V)

Tensile Strength: 900~1050Mpa

Weight : 2g

Forged Head CNC machined with rolled threads

Finish : Polished

Head diameter : 8.5mm

Head depth : 5mm

Allen key size : 4mm

Excellent corrosion resistance

Compatible with our M5 aluminium cone washers

Install the bolts using the torque values specified by the original manufacturer. Always consult a qualified technical or equivalent expert for installation
