Avant Moto Design

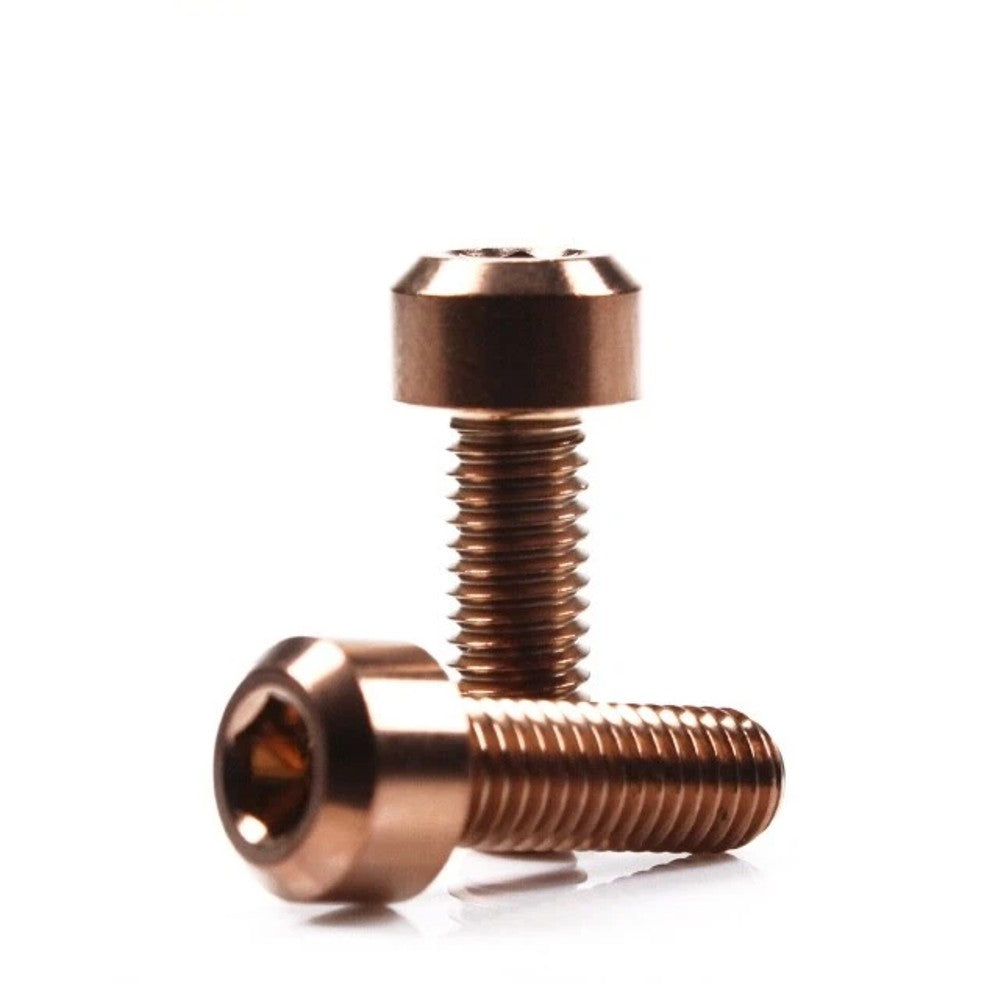

Titanium Chamfer Socket Cap Head Bolts M5 (0.80MM) 15MM Bronze
Titanium Chamfer Socket Cap Head Bolts M5 (0.80MM) 15MM Bronze
In stock
Free UK delivery on orders over £25
Couldn't load pickup availability
Description
Titanium fasteners are ideal for applications that require both lightness and high strength. Our M5 (0.80mm) x 15mm chamfer socket cap head bolts are made from titanium grade 5 which is both extremely strong and incredibly light, having one of the the highest strength-to-weight ratios available to the industry, 30% stronger than steel and around 40% lighter. As well as the weight saving benefits, the bolts offer higher corrosion resistance than OEM bolts. The bronze PVD finish is a tough and durable coating which is four times harder than chrome, making it more resilient to corrosion and scratches
M5 (0.80mm) x 15mm Titanium Chamfer Socket Cap Head Bolts
Compatible with our M5 aluminium cone washers
Specification
| Material | Titanium Gr5 (Ti-6Al-4V) |
|---|---|
| Tensile strength | 900~1050Mpa |
| Weight | 2g |
| Finish | PVD Bronze |
| Head diameter | 8.5mm |
| Head depth | 5mm |
| Allen key size | 4mm |
| Thread diameter | M5 |
| Thread pitch | 0.80mm |
| Length | 15mm |
- Precision-finished with rolled threads
- Excellent corrosion resistance
Fitment and safety
Check the thread pitch, length and diameter match your original bolt before fitting. Not sure? Read our FAQ.
Delivery and returns
Orders are dispatched within 1–2 working days. UK delivery is free on orders over £25.
Returns: 30 days from delivery. Items must be unused and in their original packaging. Email info@avantmotodesign.com before sending anything back.
Care
Torque: use a calibrated torque wrench and the manufacturer specification.
Anti-seize: titanium can gall if fitted dry. Apply a thin layer of copper-based anti-seize to the threads when fitting into aluminium or steel.
Tools: use a well-fitting hex key and push it fully home before tightening, to avoid rounding the socket.
Cleaning: clean the coloured PVD finish with mild soapy water and a soft cloth. Avoid abrasive pads, metal polish and harsh solvents, which can wear the coating.
