M6 (1.00mm) x 20mm Titanium Torx Head Bolt
Material : titanium Gr5 (Ti-6Al-4V)
Tensile Strength: 900~1050Mpa
Weight : 5g
Hot forged CNC machined with rolled threads
Finish : Polished

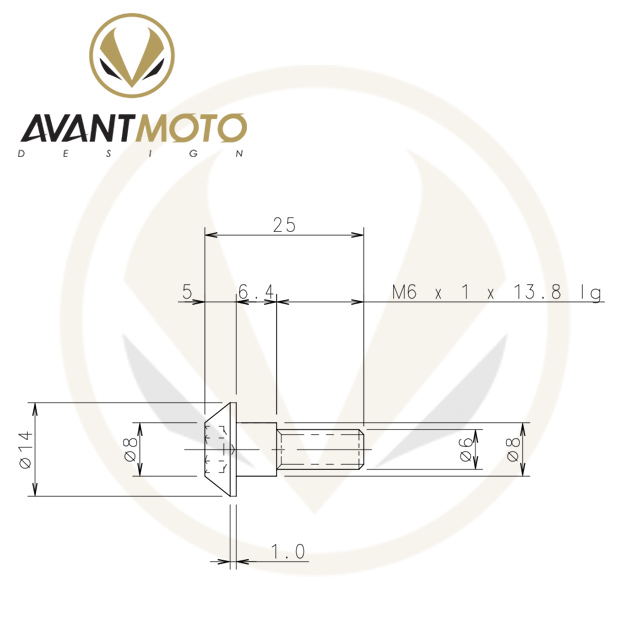

Head diameter : 14mm
Head depth : 5mm
Shoulder diameter : 8mm
Allen key size : 6mm
Excellent corrosion resistance
Install the bolts using the torque values specified by the original manufacturer. Always consult a qualified technicial or equivalent expert for installation. Make sure the thread pitch, bolt length, dimensions and diameter matches that of the original manufacturers bolt you intend to replace.
Compatibility includes the following models :
- Suzuki GSX-R750 L1+ 11>
- Suzuki GSX-R600 L1+ 11-16
- Suzuki Katana 19>
- Suzuki GSX-R1000 L7+ 17>
- Suzuki GSX-R600 K8-L0 08-10
- Suzuki GSX-R750 K8-L0 08-10
- Suzuki GSX-S1000 15>
- Suzuki GSX-S1000FA 15>
- Suzuki GSX-R1000 K9-L1 09-11
- Suzuki GSX-R1000 L2-L6 11-16
